In the field of metal forming, bending aluminum sheet metal without cracking is not simply a matter of adjusting parameters, but rather a systematic engineering process involving the synergy of materials science, strain mechanics, and precision tool engineering.
Cracking defects are far more than mere surface imperfections; they directly disrupt the fiber continuity of the material, leading to a drastic decline in the structural integrity, dynamic fatigue strength, and stress corrosion resistance of the component. The key to a successful aluminum sheet metal bending process lies in a deep understanding and precise control of its unique plastic flow behavior and failure mechanisms.
Based on metallurgical principles and engineering practice, this paper systematically analyzes the complete aluminum sheet metal bending process—from alloy condition selection and strain calculation to die optimization—and provides a practical, professional-grade solution framework for eliminating bending cracks.
Foundational Materials—Understanding the Characteristics of Aluminum Sheet Metal Bending
When planning aluminum sheet metal bending projects, success hinges primarily on a deep understanding of the raw material's metallurgical properties, which form the cornerstone of the entire aluminum sheet metal bending process system. Unlike steel, which exhibits more uniform isotropic behavior, the bending performance of aluminum alloys is closely tied to their specific heat treatment condition and the microstructure formed during rolling.
Relationship Between Alloy Condition and Aluminum Sheet Metal Bending
The formability of aluminum sheet fundamentally depends on its strengthening mechanisms. Precipitation-hardened aluminum alloys (e.g., 6061-T6, 7075-T6) achieve high strength through heat treatment that forms nanoscale intermetallic compound particles. These particles severely impede dislocation motion during the aluminum sheet metal bending process, reducing the material’s plastic reserve.
Consequently, the allowable tensile strain at the outer edge decreases during bending, making the material highly crack-sensitive and exhibiting significant springback. Conversely, in work-hardened aluminum alloys (e.g., 3003-H14, 5052-H32) derive their strength primarily from dislocation structures formed during cold rolling, exhibiting more continuous and controllable plastic flow during aluminum sheet metal bending.
Therefore, when evaluating an aluminum sheet metal bending process, the first step is to confirm the material’s strengthening mechanism: For complex aluminum sheet metal bending requiring small radii, the work-hardened condition is typically the safer choice; if high-strength precipitation-hardened aluminum alloys must be used, radius requirements should be relaxed, and significant process challenges should be anticipated.
Influence of Microstructure on Bending Aluminum Sheet Metal: Grain Orientation and Anisotropy
Rolling processes elongate aluminum sheet grains along the rolling direction, creating pronounced mechanical anisotropy. During aluminum sheet metal bending, bending parallel to the rolling direction applies tensile stress to the most vulnerable transverse grain boundaries, greatly increasing the risk of edge cracking. Therefore, the bending line must be perpendicular to the original sheet’s rolling direction during aluminum sheet metal bending.
The microstructure of the material is the fundamental factor determining the surface finish and ultimate formability of bent parts. Coarse grain structures cause uneven orange peel patterns on the outer surface during aluminum sheet metal bendingand serve as crack initiation points at strain concentration zones. Therefore, for components with stringent appearance requirements or those requiring severe forming, finer grain size grades should be specified at procurement according to ASTM E112 standards.
Process Mechanics—Aluminum Sheet Metal Bend Radius, Neutral Layer, and Strain Calculation
When planning aluminum sheet metal bending processes, moving beyond empirical rules and conducting in-depth process mechanics analysis is crucial for ensuring forming quality and dimensional accuracy. This process involves three interrelated core variables: bend radius, neutral axis displacement, and outer fiber strain. Successful aluminum sheet metal bending processes are built upon understanding the quantitative relationships between these variables.
Understanding the Minimum Bend Radius for Aluminum Sheet Metal
The commonly cited empirical formula for minimum bend radius, R_min = K * t (where t is thickness), serves as a crucial starting point. It defines the geometric limit under ideal conditions where outer-edge material fibers do not crack during aluminum sheet metal bending. In practical bending processes, the K value must be corrected based on material certification data or internal bending tests.
To go beyond empirical formulas, quantitative strain analysis is required. The maximum tensile strain (ε) on the bend’s outer edge is determined by geometric relationships and can be approximated as: ε_max = Thickness / (2 × Inner Bend Radius + Thickness). This formula indicates that strain levels are proportional to sheet thickness and inversely proportional to the bending radius. For example, bending a 3mm-thick sheet with a 6mm inner radius yields approximately 20% outer strain.
If the material’s fracture strain in T6 condition is only 15%, cracking is inevitable. Therefore, a professional aluminum sheet metal bending process plan must compare calculated strain against the material’s allowable strain limit in its specific condition. This represents a critical step in transforming aluminum sheet metal bending from an experience-dependent craft into a predictable engineering process grounded in material mechanics.
Relationship Between Cracking and Springback in the Aluminum Sheet Metal Bending Process
Cracking and springback are two manifestations of the same mechanical process, both stemming from the elastic and plastic strain experienced by the material during aluminum sheet metal bending. During bending, the outer layer undergoes tensile stress while the inner layer experiences compressive stress.
When tensile strain in the outer layer exceeds the material’s plastic limit, cracking occurs—an irreversible plastic failure. Springback arises from the release of internal elastic strain energy after unloading: even when plastic deformation has occurred in the outer layer, the elastic deformation zone near the inner layer and neutral layer attempts to return to its original state, causing the bend angle to decrease.
To overcome springback and ensure dimensional accuracy, pre-compensation techniques must be applied during the aluminum sheet metal bending process. This involves intentionally reducing the die angle during design based on precise predictions or measured data of material springback angles.
For example, if a material springs back 5 degrees at a 90-degree target angle, the die angle should be designed to approximately 85 degrees. For more complex multi-bend parts or high-strength alloys, an “over-bend and fine-tune” strategy is often employed: first performing an aluminum sheet metal bend slightly exceeding the target angle, followed by precise calibration using finishing operations or dies with controlled straightening capabilities. This systematic compensation logic is central to ensuring consistency in high-volume aluminum sheet metal bending.
Are you looking for reliable & cost-effective
China metal fabrication manufacturer
More than 150,000 OEM metal fabrication products delivered to 5,000+ global buyers.
And benefit from it!
Tool Engineering—Die Design, Surface Finish, and Clearance Control in Aluminum Sheet Metal Bending Processes
In aluminum sheet metal bending practice, tool engineering serves as the physical interface that translates theoretical process parameters into qualified products. Its design precision directly determines forming quality and consistency.
Matching the Die Tip Radius in Aluminum Sheet Metal Bending Processes
The upper die tip radius is a core variable controlling the quality and geometric precision of the aluminum sheet metal bending process. Its selection strictly adheres to the Rp ≥ R_min principle, meaning the upper die tip radius (Rp) must be greater than or equal to the minimum safe inner bending radius for the material condition.
In practice, for most aluminum sheet metal bending operations, the Rp value is typically set at 4 to 6 times the material thickness (t). This ratio ensures stress is adequately dispersed across the bending zone, preventing cracking of the outer fibers due to excessive thinning.
Crucially, the upper die tip radius in aluminum sheet metal bending must precisely match the material condition: higher Rp/t ratios are required for high-strength T6-tempered aluminum alloys to compensate for their reduced ductility. In precision aluminum sheet metal bending, the final upper die radius specification must be validated through strain calculations and actual test bend data. Any arbitrary deviation from standard parameters directly increases cracking risk and dimensional uncertainty.
Selection of Lower Dies for Aluminum Sheet Metal Bending Processes
The opening width (V width) of the lower die’s V-groove is another critical parameter for adjusting aluminum sheet metal bending processes. The ratio of V width (W) to material thickness (t) (W/t) directly determines the bending lever arm and required tonnage. The standard selection range is W = 6t to 12t.
A narrower V-groove (e.g., 6t) generates greater lateral pressure, which helps reduce bending springback but increases the risk of friction and scratches on the inner surface of the sheet. A wider V-groove (e.g., 12t) provides more material flow space, reducing surface damage, but leads to a significant increase in bending springback.
Therefore, when establishing aluminum sheet metal bending process specifications, explicit W/t ratios must be defined for different alloys and thicknesses. Additionally, the radius of the lower die shoulder must be smooth, and high-finish polishing or hard coating (e.g., TiN) is recommended to minimize scratches and hairline defects on soft aluminum sheet surfaces during bending.
Bending Force and Application of Anti-Crease Pads
Customized anti-crease strategies are required for complex geometries like long-edge bending or large-radius forming. The core method involves using specialized anti-crease pads made of polyurethane, nylon, or soft aluminum alloy, precisely embedded into specific areas of the hold-down plate or lower die.
Their function is to apply localized, enhanced clamping force to potential wrinkle zones before and during aluminum sheet metal bending, suppressing material buckling under pressure. Designing wrinkle pads for the aluminum sheet metal bending process is a specialized engineering discipline requiring analysis based on sheet thickness, bend length, and material flow direction.
Techniques and Special Scenario Responses for Aluminum Sheet Metal Bending
When addressing high-difficulty scenarios in aluminum sheet metal bending, standard process parameters often prove ineffective, necessitating the application of targeted advanced techniques. Core challenges primarily stem from three material categories: thick plates and high-strength alloys (such as 7075-T6), post-welded components, and pre-coated sheets.
Bending Thick Plates and High-Strength Aluminum Sheet Metal
Processing materials exceeding 6mm thickness or high-strength aluminum alloys (e.g., 7075-T6) poses significant challenges to standard bending processes. The core issue lies in the material’s high yield strength and extremely low plasticity reserve, making outer fiber strain prone to exceeding its fracture limit.
To address this, an effective aluminum sheet metal bending technique involves localized controlled preheating, typically heating the bend line area to 150°C – 200°C. This temperature range significantly reduces the material’s yield strength and enhances ductility without inducing excessive grain growth or permanent degradation of mechanical properties.
Another critical strategy is multi-step progressive forming, where material is bent through a series of incremental small-angle bends (e.g., 15°–20° per pass) rather than attempting a single full bend. This aluminum sheet metal bending method distributes total strain across multiple deformations, reducing the risk of cracking from a single large deformation. Rigorous process validation testing is essential when planning such aluminum sheet metal bending processes.

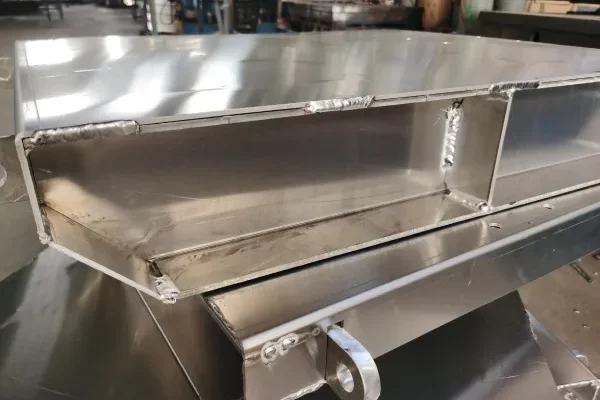

Bending Along Welds or Heat-Affected Zones (HAZ)
Bending welded components is a high-risk operation. The microstructure within the weld heat-affected zone (HAZ) is altered, typically exhibiting grain coarsening, dissolution of strengthening phases, and residual tensile stress fields. This results in uneven hardness and significantly reduced ductility within this region.
Therefore, the primary principle for aluminum sheet metal bending is: never position the bend line directly over the weld or HAZ. Professional process instructions must be incorporated during the design phase to reposition the bend line entirely within the base material unaffected by welding heat.
If structural constraints prevent avoidance, the welded component must undergo full stress-relief annealing prior to bending to homogenize the microstructure and release internal stresses. Neglecting this will result in extremely high and unpredictable cracking failure rates during the aluminum sheet metal bending process.
Bending of Anodized or Coated Sheets
For aluminum sheets with hard anodized layers or spray coatings (such as polyester powder coatings), the primary conflict in the aluminum sheet metal bending process lies in the mismatch of mechanical properties between the coating and the base aluminum.
The coating is typically brittle and hard, with a fracture strain far below that of the aluminum substrate. During bending, the brittle coating fractures first, creating microcracks that act as stress concentration points, subsequently inducing premature cracking in the aluminum substrate itself.
Therefore, the reliable bending principle is “form first, finish later.” All bending operations must be completed before any surface treatment is applied to the sheet. If bending is performed on pre-treated sheets (e.g., modifying existing components), it must be done with a greater bending radius and potential cosmetic imperfections.
Looking for a reliable custom sheet metal fabrication companies?
Talk To Supro MFG Expert Team
Contact us for competitive ex-factory prices,
and a full range of technical support services.
Quality Assurance and Fault Diagnosis in the Aluminum Sheet Metal Bending Process
A reliable aluminum sheet metal bending process requires systematic quality assurance and precise fault diagnosis capabilities. This extends beyond final visual inspection to establish a comprehensive control system spanning from first article verification to batch monitoring.
Process Inspection and Crack Detection in Aluminum Sheet Metal Bending
This phase involves full-dimensional 3D optical scanning of the first article to validate springback compensation models and establish qualified process parameter windows (e.g., bending depth, tonnage). For crack detection in aluminum sheet metal bending, visual inspection serves as the foundation but must be supplemented by systematic examination of the bend flange using a magnifying glass (10x magnification or higher).
For critical load-bearing components, dye penetrant testing (PT) is essential for detecting microscopic cracks. Particular attention is required for certain aluminum alloys (e.g., 6061-T4) undergoing natural aging after bending, as “delayed cracking” may occur hours or days later. Therefore, appropriate post-aging reinspection ensures long-term structural integrity of delivered products.
Analysis of Typical Crack Morphologies and Root Cause Tracing in Aluminum Sheet Metal Bending Processes
Failure diagnosis in aluminum sheet metal bending relies on rapid interpretation of crack morphology. Lateral cracks on the outer edge are the most common type, typically stemming from a bending radius (Ri) smaller than the minimum allowable value for the material in that state, or improper selection of the upper die tip radius (Rp). This indicates errors in strain calculations during process planning or material hardness exceeding preset values.
Edge longitudinal cracks point to edge quality issues or design flaws: they may result from micro-cracks or burrs generated during blanking that propagate during bending, or stem from bending lines parallel to the rolling direction, exploiting the material’s weakest orientation.
Cracks at wrinkled areas represent secondary failures, fundamentally caused by insufficient holding force or improper anti-wrinkle pad design. This leads to material buckling and wrinkling before bending, where the creases become stress concentration points that fracture during subsequent forming.
Conclusion
Achieving high-integrity aluminum sheet metal bending fundamentally transforms this craft—once reliant on experience—into a predictable, controllable precision engineering discipline. Crack-free bending is not the result of a single technique, but rather the synergistic outcome of four pillars: materials science, process mechanics, tool engineering, and quality control.
