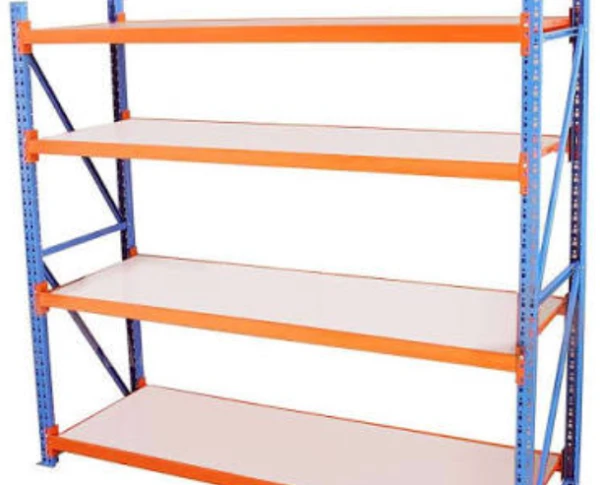

For any industrial storage solution, the structural integrity of heavy duty shelving depends directly on the reliability of its fastening system. However, during on-site assembly of heavy duty metal shelving, thread galling and strip-out are the two primary failure modes that cause assembly process interruptions and result in high rework costs—both prevent bolts from achieving the target clamping force or directly damage the stress cross-section of the internal threads, leading to a degradation of load-bearing joints.
Based on our nearly 20 years of experience in precision sheet metal manufacturing and integrated assembly, over 60% of on-site repairs stem from fastener issues, with the hidden costs often exceeding 20 times the purchase price of the fasteners themselves.
This article analyzes the physical mechanisms behind these failure phenomena in custom heavy duty shelves and provides procurement and engineering personnel with a systematic preventive framework from three dimensions: engineering materials, coating processes, and torque specifications. Treating fasteners as engineering components requiring precise calculation—rather than simple standard parts—is the core prerequisite for enhancing the long-term service performance and full-lifecycle safety of heavy duty shelves.
Definition of Failure Phenomena: Galling and Strip-Out in heavy duty Shelves
For heavy duty metal shelving, galling and strip-out are the two most common failure modes during on-site assembly. Accurately identifying the physical characteristics and stages of occurrence for both is the primary technical prerequisite for developing root-cause prevention strategies and avoiding assembly delays and structural joint failures.
Galling (Galling/Cold Welding)
Galling, often referred to as “cold welding” in engineering, is a phenomenon in which, during the engagement of fasteners, adhesive wear occurs at the microscopic tips of the threads under high contact pressure, causing the entire fastener pair to seize. For custom heavy duty shelves, when using uncoated austenitic stainless steel fasteners or fasteners made of the same material, the oxide layer fractures under friction, and the exposed reactive metal surface is highly prone to localized welding and shearing.
This failure typically occurs during the initial stages of assembly. Once it occurs, forcing the fastener to be tightened will only exacerbate the damage, ultimately rendering the entire connection pair unusable—an irreversible assembly failure.
Thread Stripping (Stripping/Peeling)
Thread stripping essentially involves plastic shearing or fatigue peeling of the internal or external thread profile under axial loads, resulting in the complete loss of clamping force in the threaded joint.
In the assembly of Heavy Duty Shelves, this phenomenon is often caused by selecting fasteners of an insufficient grade (e.g., commercial-grade instead of structural-grade), whose proof load fails to meet the design safety factor. Additionally, excessive powder coating seeping into the threaded hole can significantly alter the effective mating diameter, drastically reducing the actual contact area during thread engagement and causing local stresses to exceed the material’s shear strength.
Once thread stripping occurs, it means that the structural load-bearing capacity of that connection point has been permanently reduced to a dangerous level.
Quantification of On-Site Consequences
The impact of these two failure modes on heavy duty metal shelving projects is directly reflected in terms of time and cost.
A single instance of thread seizing or stripping results in an average of 15–30 minutes of on-site production downtime for resolution. If bolt removal or threaded hole repair is required, the rework costs can reach up to three times the original assembly cost.
From a safety perspective, a single instance of thread slippage at a critical joint can reduce the local load-bearing capacity of heavy duty shelving by more than 50%, creating a latent risk of sudden structural instability throughout the entire lifecycle.
For warehouse systems, these seemingly minor fastener issues are, in essence, systemic risk factors that affect overall assembly efficiency and long-term reliability.
Root Cause Analysis: The Three Major Weaknesses in Current heavy duty Shelving Systems
Upon in-depth analysis of the root causes of thread failure in heavy duty metal shelving assemblies, we found that the problem does not stem from on-site operations but is rooted in systemic engineering oversights at the front end of the supply chain. The following three weaknesses—material selection, coating processes, and torque specifications—constitute a critical chain of defects extending from design selection to process control.
Mismatch Between Fastener Grades and Coatings
This is the most fundamental cause of connection failure in heavy duty shelving systems. Many procurement specifications merely require “galvanized steel fasteners,” while neglecting the critical material grade.
Commercial-grade (Grade 2/4.6) fasteners and structural-grade (Grade 5/8.8 or Grade 8/10.9) fasteners exhibit a performance gap of several times in terms of tensile strength and proof load.
When lower-grade fasteners are used in heavy duty metal shelving joints subjected to dynamic shear forces, the thread roots are highly susceptible to plastic deformation under preload. Worse still, if the galvanized coating is improperly applied (such as an excessively thick plating layer), it can alter the thread fit tolerances and coefficient of friction, generating abnormally high localized contact stresses during thread engagement, which directly leads to galling or strip-out.
“Penetration Contamination” in Powder-Coated heavy duty Shelves
In the sheet metal manufacturing process, powder coating—applied to enhance the surface durability of custom heavy duty shelves—can become a disaster during assembly if the threaded areas are not properly protected.
Excessive coating penetration into the threaded counterbores or bolt holes effectively reduces the effective mating diameter of the threads and increases surface roughness. This “penetration contamination” poses a twofold hazard: first, the insulating properties of the coating significantly increase frictional resistance during thread engagement, causing the tightening torque to rise sharply; second, cured epoxy resin particles form hard abrasive grains on the thread engagement surfaces, exacerbating micro-adhesive wear under high pressure.
Real-world cases show that even an abnormal coating as thin as 80 micrometers can prevent a standard thread gauge (Go/No-Go Gauge) from passing, creating a hidden risk of failure.
Lack of and Misuse of Torque Specifications
The greatest variable in on-site assembly often stems from the absence of a scientific torque control system. Many installation manuals for heavy duty shelving systems provide only vague instructions to “tighten,” without explicitly specifying the target torque (N·m) calculated based on a specific coefficient of friction and its tolerance range. This is a serious engineering oversight: the relationship between torque and clamping force is not linear, and its conversion efficiency is significantly influenced by the thread’s lubrication condition, coating material, and surface roughness.
For example, the torque coefficient for dry threads may differ by 20%–30% compared to threads treated with a basic lubricant. If an operator uses an impact wrench to tighten fasteners based on feel alone, it is highly likely that the fastener’s yield strength will be exceeded, directly leading to thread stripping; or, if the preload is insufficient, loosening under dynamic loads may result in fatigue failure.
Quantitative, parameterized torque specifications are the last line of defense for ensuring the reliability of heavy duty shelf connections.
Only 4 steps
online custom metal fabrication parts
Contact our experts team and experience the efficiency and economic benefits of digital metal fabrication services.
Upload Design Files
STL , STEP (.stp), IGES (.igs), (.ZIP), or PDF.
Also be a sample or an idea
Quote & Design Analysis
Instant factory quotes and DfM reports, the most reasonable solution.
Manufacturing Begins
Digital processes can initiate order tasks within 24 hours.
On-Time Delivery
Keeping delivery promises, approved by 3000+ Global Company buyers.
Engineering Solutions for Thread Failure in heavy duty Shelves
To address the root causes of thread failure in heavy duty shelves, a closed-loop engineering strategy covering the entire supply chain must be established. The following solutions involve systematic interventions ranging from procurement specifications and manufacturing processes to assembly controls, embedding connection reliability into every stage.
Upgrading Mandatory Standards at the Procurement Stage
To resolve thread failure in heavy duty metal shelving at its source, the primary task is to thoroughly restructure the procurement specifications for fasteners. All fasteners must be mandatorily upgraded to structural grade (Grade 5 or 8), and minimum values for their proof load and tensile strength must be clearly specified. Vague terms such as “commercial grade” or “standard grade” must be eliminated from the Bill of Materials (BOM) and replaced with specific technical specifications for material chemical composition, hardness, and plating thickness.
As an ISO 9001-certified professional heavy duty shelving manufacturer, we ensure that the mechanical properties of every batch of fasteners are fully documented, thereby fundamentally eliminating the risk of strip-out caused by insufficient material strength.
Coating Process Control in heavy duty Shelf Fabrication
To address “penetration contamination” from powder coatings, we have introduced mandatory thread protection specifications in the coating process. For all threaded holes and through holes on custom heavy duty shelves that require assembly, high-temperature-resistant silicone plugs or specialized masking fixtures must be used for physical isolation—this is the most direct and effective method to prevent coating intrusion.
For batch parts where coating residue may still remain after painting, we have added a high-precision “secondary tapping” process and conduct 100% inspection using calibrated thread go/no-go gauges. This process control ensures that the effective thread engagement area is not affected by the coating, maintaining the coefficient of friction within a controllable design range and effectively preventing galling caused by excessive tightness.
Parametric Control of Torque at the Assembly Stage
We have compiled precise assembly torque specification tables for all Heavy Duty Shelves products, which serve as mandatory technical documents for on-site operations. These specifications eliminate vague descriptions such as “tighten” and clearly specify the target torque (N·m) as well as the minimum and maximum allowable torque ranges for each fastener specification, based on specific lubrication conditions (e.g., dry or using a base lubricant).
At the same time, technical bulletins clarify the impact of the torque coefficient (K-value) on clamping force and guide operators in adjusting torque parameters according to actual friction conditions.
At the tool level, we require all assembly lines to use regularly calibrated pulse-type torque wrenches, strictly prohibiting the use of impact wrenches based on empirical judgment.
This parameter-based control system directly limits variations in preload to within the engineering tolerance of ±15%, ensuring the long-term reliability and structural safety of heavy duty metal shelving connection joints.
Proactive Quality Assurance in heavy duty Shelving Fabrication
To ensure the long-term reliability of heavy duty shelving, relying solely on final inspection is far from sufficient. True quality assurance must be integrated into the manufacturing process itself, establishing a preventive quality system through proactive engineering interventions at both the design and production stages.
Early Involvement of DFM (Design for Manufacturing)
To resolve thread connection issues in heavy duty shelving systems at the source, quality management must be integrated as early as the design review stage.
We adhere to DFM (Design for Manufacturing) principles, with our process engineering team conducting a comprehensive manufacturability analysis as soon as customer drawings are received. This includes reviewing the compatibility of all thread specifications with sheet metal thicknesses, assessing the machinability of welded nuts or flanged holes, and anticipating the impact of powder coating on thread dimensions.
A typical optimization example is the addition of thread relief grooves or the use of deeper pilot holes during the design phase, which effectively prevents subsequent coating buildup and assembly interference. This early intervention eliminates most process variables before mass production begins, ensuring that the design’s fastening solution inherently possesses process robustness during the fabrication of heavy duty shelving.
End-to-End Traceable Batch Management for heavy duty Shelving
For load-bearing structures such as heavy duty metal shelving, reliable connections depend on a fully transparent batch traceability system. In our quality management system, every stage—from raw material receipt to finished product shipment—is incorporated into a unified batch management process.
Every batch of sheet metal parts, every batch of fasteners, and their corresponding coating process parameters are assigned a unique serial number and recorded on file. This means that should any abnormal fluctuations occur in the supply chain or during manufacturing, we can quickly pinpoint the scope of the impact and implement precise containment and corrective actions.
As an ISO 9001-certified heavy duty shelving manufacturer, we can provide, upon request, a complete set of traceability documentation—including raw material certificates of conformity, in-process inspection records, and final inspection reports—to meet the stringent documentation acceptance requirements of industrial projects.
Conclusion
Resolving thread galling and stripped threads in heavy duty shelves requires more than just on-site remedies; it demands closed-loop engineering control spanning procurement, manufacturing, and assembly. By redefining fasteners from “standard parts” to “critical load-bearing components”—and by mandating upgrades to structural-grade specifications, implementing coating isolation and secondary tapping processes, and adopting parametric torque management—the root causes of failure can be systematically eliminated.
Practice has shown that this preventive framework can reduce related assembly failures by more than 90%. Connection reliability does not stem from inspection but begins with early-stage engineering planning and end-to-end traceability.
