In demanding industrial environments, standard heavy duty metal brackets often become the weak link in system reliability. When components fail due to metal fatigue under dynamic loads, stress corrosion cracking in harsh conditions, or simple geometric mismatches, the consequences far exceed the cost of part replacement. This leads to unplanned downtime, safety violations, and costly production losses.
As a specialized heavy duty metal bracket manufacturer, Supro understands that true engineering support stems from deep analysis of application load spectra, environmental corrosion factors, and long-term performance degradation curves. Therefore, custom heavy duty metal brackets tailored to specific operating conditions are an engineering necessity for ensuring structural integrity and smooth project operation.
This article systematically explains how, through a collaborative engineering design process—from finite element analysis to materials science—custom heavy duty metal brackets transform structural risks into enduring operational advantages.
Why Standard Heavy Duty Metal Brackets Are a Potential Weak Link in the Project Chain
In engineering projects, standard heavy duty metal brackets are often viewed as a simple, off-the-shelf solution. However, from an engineering reliability perspective, they can become the most unpredictable weak link in the entire system. The fundamental issue lies in the inherent conflict between generic design and specific operating conditions.
Mismatch in Load Spectrum of Standard Heavy Duty Metal Brackets
The rated load capacity of standard heavy duty metal brackets is typically based on simplified static testing conditions, creating a significant gap compared to the complex dynamic conditions encountered in real-world applications. A standard heavy duty metal bracket rated for 500 kg may not account for cyclic alternating stresses generated by equipment start-ups, material handling, or mechanical vibrations. For instance, a minor vibration cycling twice per second will produce over 60 million stress cycles annually—sufficient to initiate fatigue microcracks in stress concentration zones like weld heat-affected zones or sharp corners.
This mismatch in load profiles means standard heavy duty metal brackets may exhibit fatigue lifetimes far shorter than the equipment’s design lifespan, leading to unexpected failures before reaching static limits. Professional heavy duty metal bracket manufacturers optimize stress distribution during design by simulating real-world dynamic loads using finite element analysis (FEA), significantly extending service life.
Environmental Adaptability Deficiencies of Standard Heavy Duty Metal Brackets
The surface treatments of standard heavy duty metal brackets (e.g., basic powder coating or electroplating) are typically generic solutions that fail to meet diverse industrial environmental requirements. In coastal or chemical plant settings, chloride ions or chemical media rapidly corrode standard coatings, causing pitting corrosion or stress corrosion cracking in standard heavy duty metal brackets and weakening their cross-sectional strength. Similarly, in cryogenic or high-temperature conditions, the toughness of standard carbon steel may decrease or exhibit creep deformation.
As a specialized heavy duty metal bracket manufacturer, Supro understands the critical importance of precisely defining corrosion categories (e.g., C4, C5-M grades) according to standards like ISO 12944. Custom heavy duty metal brackets enable systematic matching from material selection to surface treatment, ensuring long-term structural integrity in specific environments.
Geometric Limitations of Standard Heavy Duty Metal Brackets
The fixed dimensions and connection methods of standard heavy duty metal brackets often force engineers to compromise during layout design. Such compromises may result in inefficient use of installation space, additional transition plates or shims, or even necessitate altering the optimal mounting orientation of equipment. More critically, imperfect geometric fits introduce unintended additional bending or torsional loads, subjecting standard heavy duty metal brackets to actual stresses far exceeding their design values.
In contrast, the core advantage of custom heavy duty metal brackets lies in “form follows function.” Through early collaboration with client engineering teams, we optimize the geometry of heavy duty metal brackets to ensure seamless integration with existing structures or equipment interfaces. This approach eliminates installation stresses, maximizes available space utilization, and achieves more efficient, reliable integration.
Common Misconceptions About the Total Cost of Ownership (TCO) of Standard Heavy Duty Metal Brackets
Purchasing decisions based solely on initial unit price will significantly underestimate the long-term costs associated with standard heavy duty metal brackets. The replacement cost of a bracket that fails prematurely due to incompatibility includes not only the expense of new parts, but also downtime, emergency logistics, and labor for disassembly and reassembly. Furthermore, inadequate performance of standard heavy duty metal brackets may exacerbate equipment vibration, degrade alignment precision, and accelerate wear on associated components.
Custom heavy duty metal brackets, however, eliminate these potential failure points at their source through targeted design, ensuring the support structure perfectly matches your specific application requirements.
Only 4 steps
online custom metal fabrication parts
Contact our experts team and experience the efficiency and economic benefits of digital metal fabrication services.
Upload Design Files
STL , STEP (.stp), IGES (.igs), (.ZIP), or PDF.
Also be a sample or an idea
Quote & Design Analysis
Instant factory quotes and DfM reports, the most reasonable solution.
Manufacturing Begins
Digital processes can initiate order tasks within 24 hours.
On-Time Delivery
Keeping delivery promises, approved by 3000+ Global Company buyers.
Custom Heavy Duty Metal Brackets: From Requirements Analysis to Performance Validation
Unlike procuring off-the-shelf standard components, obtaining reliable custom heavy duty metal brackets involves a systematic engineering process. This process transforms your specific application challenges into designed and validated performance guarantees. As a professional heavy duty metal bracket manufacturer, Supro follows a structured three-phase process to ensure delivered components precisely match your technical specifications and long-term reliability requirements.
Phase One: In-Depth Collaborative Analysis of Custom Heavy Duty Metal Bracket Requirements
Successful customization begins with precise requirement definition, requiring close collaboration between the customer and the heavy duty metal bracket manufacturer’s engineering team. We first conduct load condition identification, analyzing dynamic loads, impact factors, and fatigue cycle counts (based on Miner’s rule), while determining appropriate safety factors according to ASME or relevant industry standards.
Second, defining environmental parameters for custom heavy duty metal brackets is critical. This involves specifying chemical exposure, temperature range, humidity, and potential abrasion factors to determine the corrosion protection level (C1 to C5-M) per ISO 12944.
Finally, detailed interface and constraint mapping documents geometric tolerances at mounting points, bolt specifications, clearances to adjacent equipment, and thermal expansion expectations. These three elements collectively form the design foundation for custom heavy duty metal brackets.
Phase Two: Material Selection and Structural Design for Custom heavy duty Metal Brackets
Based on the defined requirements for custom heavy duty metal brackets, the engineering phase transforms the concept into a manufacturable and efficient design. The first step is the material selection matrix, where we compare the yield strength, toughness, weldability, and cost-effectiveness of materials like carbon steel (e.g., Q355B/A572), stainless steel (316L), and aluminum alloys based on yield strength, toughness, weldability, and cost-effectiveness to match load and environmental requirements.
Subsequently, computation-driven design becomes central: we create 3D models of heavy duty metal brackets using CAD and apply finite element analysis (FEA) for static stress, modal vibration, and fatigue life simulations. FEA enables us to visualize stress distribution before manufacturing heavy duty metal brackets, optimize material layout, eliminate stress concentrations, and prevent resonance with equipment operating frequencies.
Detailed engineering refines the design—for instance, specifying full-penetration welds to enhance fatigue strength in custom heavy duty metal brackets, adding stiffeners to resist buckling, or integrating anti-loosening features to withstand vibration.
Phase Three: Manufacturing and Quality Management of Custom Heavy Duty Metal Brackets
Once the design proposal is validated, the manufacturing phase aims to precisely and consistently translate digital models into physical entities. This stage directly determines the performance, durability, and delivery consistency of custom heavy duty metal brackets.
Precision Manufacturing Processes
Precision manufacturing forms the foundation for realizing design intent. For custom heavy duty metal brackets, we first employ CNC fiber laser cutting or high-precision plasma cutting for blanking. This not only ensures one-time forming accuracy for complex contours and bolt hole positions (typically within ±0.5mm tolerances) but also yields high-quality cut surfaces, providing excellent base material bonding surfaces for subsequent welding.

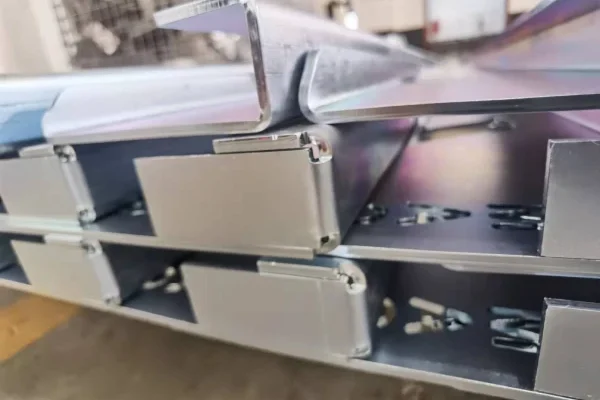

For forming operations, high-tonnage CNC press brakes paired with specialized dies guarantee consistent bending angles and straightness for custom heavy duty metal brackets—critical for multi-component assembly.
Welding, the core joining process for these brackets, is performed automatically by robots. Robotic welding guarantees constant parameters (current, voltage, speed) for each weld seam, achieving repeatability far exceeding manual welding, consistent penetration depth, and minimal heat-input distortion. This is vital for meeting the structural performance parameters predefined in FEA analysis.
Surface Treatment and Corrosion Protection
Surface treatment serves as the critical barrier for custom heavy duty metal brackets to withstand environmental corrosion and achieve their design lifespan. Process selection is directly driven by the environmental corrosion category defined in Phase 1 (e.g., ISO 12944 C4, C5-M).
For custom heavy duty metal brackets deployed in highly corrosive environments, hot-dip galvanizing is the standard solution. We control immersion temperature and duration to achieve a uniform, highly adherent zinc coating typically exceeding 85μm in thickness.
When custom heavy duty metal brackets require enhanced abrasion resistance or specific colors, high-performance powder coating or “Dacromet” processes are employed. Our coating systems undergo rigorous adhesion (cross-hatch adhesion testing) and corrosion resistance (neutral salt spray testing exceeding 1000 hours) validation to ensure the protective system remains effective throughout the specified maintenance cycle.
Quality Control and Verification
Quality management for custom heavy duty metal brackets is an ongoing verification process, not merely final inspection. It begins with reviewing raw material certificates to ensure chemical composition and mechanical properties meet specifications.
During manufacturing, weld quality is monitored through non-destructive testing, such as ultrasonic testing of critical load-bearing welds to detect internal defects or magnetic particle inspection for surface cracks. At the finished product stage, we conduct full-dimensional inspections using coordinate measuring machines or high-precision gauges to ensure custom heavy duty metal brackets fully comply with geometric tolerances specified in engineering drawings. Ultimately, all inspection records are compiled into a traceable quality archive.
For custom heavy duty metal brackets operating under extreme conditions, third-party witnessed load test reports for prototypes can be provided. These reports offer objective data support for final performance validation, eliminating post-delivery uncertainties.
Are you looking for reliable & cost-effective
China Sheet Metal Fabricators
More than 150,000 OEM metal fabrication products delivered to 5,000+ global buyers.
And benefit from it!
Application Scenarios and Custom Solutions for Heavy Duty Metal Brackets
In demanding industrial environments, heavy duty metal brackets serve far beyond merely supporting objects. They function as critical structural subsystems whose performance directly determines the operational reliability, precision, and safety of entire equipment. When standard heavy duty metal brackets fail to meet the complex requirements of specific scenarios, customized solutions become the engineering decision that ensures project success.
In factory automation, high-rigidity mounting brackets customized for high-speed six-axis robots must undergo FEA analysis to optimize dynamic stiffness. This suppresses micro-vibrations generated during rapid motion, thereby safeguarding the repeatability of end-effector positioning.
For ultra-high racking in heavy duty warehousing systems, custom heavy duty metal brackets require meticulous seismic analysis and lateral buckling resistance design. This ensures overall stability under forklift impacts or seismic loads.
In energy and outdoor infrastructure—such as photovoltaic tracking systems or offshore platform equipment—custom heavy duty metal brackets require computationally validated C5-M grade corrosion protection systems (per ISO 12944) to withstand prolonged salt spray erosion and UV degradation.
For mining or agricultural specialized transport equipment, custom heavy duty metal brackets require additional impact resistance margins and mud-resistant geometric structures to withstand rugged off-road conditions.
These scenarios collectively demonstrate that a precise custom heavy duty metal bracket solution is the technical cornerstone for achieving long-term, trouble-free operation.
Choosing Supro for Your Custom Heavy Duty Metal Brackets
Selecting the right manufacturing partner is a critical decision to ensure your custom heavy duty metal brackets meet stringent engineering requirements from design through delivery. As a specialized heavy duty metal bracket manufacturer, Supro offers not only manufacturing services but also end-to-end solutions based on deep engineering collaboration. We aim to be a reliable and value-adding link in your project supply chain.
We understand that for heavy duty metal bracket procurement professionals, reliability is built on predictability and verifiability. Therefore, we have established a transparent collaborative engineering process. Starting with initial technical consultation, our engineering team works alongside you to translate your performance requirements, spatial constraints, and budget parameters into optimized designs validated through Finite Element Analysis (FEA).
We deliver not only heavy duty metal brackets but also a comprehensive documentation package including material certification reports, welding procedure specifications , and critical dimension inspection reports. This ensures complete traceability for every heavy duty metal bracket sourced through us.
Looking for a reliable custom sheet metal fabrication companies?
Talk To Supro MFG Expert Team
Contact us for competitive ex-factory prices,
and a full range of technical support services.
Conclusion
In engineering projects, heavy duty metal brackets should not be viewed as simple components but rather as critical system engineering elements. Standard heavy duty metal brackets often become potential weaknesses in system reliability due to the mismatch between their inherent versatility and the complexities of real-world operating conditions. The core solution to this engineering challenge lies in adopting customized solutions based on in-depth needs analysis.
If you require custom heavy duty metal bracket services, contact us immediately! The Supro team is here to assist you. Established in 2004, we are a professional heavy duty metal bracket manufacturer. With extensive manufacturing experience, a robust technical team, and comprehensive production resources, we have provided one-stop custom heavy duty metal bracket services to over 3,000 enterprises worldwide.
At Supro, our dedicated quality control team, experienced QC personnel, and scientific quality control processes ensure products undergo rigorous inspection to meet specified technical standards. We maintain full traceability of defective products, covering: raw material inspection, mold inspection, equipment inspection, process sampling, packaging inspection, and final inspection.
Our QA (Quality Assurance) ensures products meet necessary tolerances and quality standards. We guarantee on-time delivery for all products. From design and rapid prototype fabrication to mass production, we deliver expert technical support and exceptional quality with highly cost-competitive supply.
