In industrial automation, manufacturing and all types of harsh working environments, electrical and control components are constantly exposed to the threat of the external environment. Dust and fiber shavings in the air, splashing coolant and lubricant on the production line, and even dripping water and condensation, can trigger equipment failure, short circuits, and even lead to the cessation of the entire production line. Therefore, ensuring the safety of your electrical equipment on the job is a critical task.
The NEMA rating system is an enclosure protection standard developed by the National Electrical Manufacturers Association (NEMA) to define the enclosure protection level of electrical equipment, specifying their ability to resist solid foreign objects, liquid intrusion, and specific environments (e.g., corrosion, high and low temperatures). The NEMA 12 enclosure is one of the most widely used types of NEMA enclosures in industrial scenarios.
The article will focus on NEMA 12 electrical enclosure to carry out in-depth analysis, first from its core definition, and then analyze its advantages and disadvantages, and list common use scenarios, and finally NEMA 12 enclosure and NEMA 1 enclosure for multi-dimensional comparative analysis, to help you get the best and most accurate information about NEMA 12 enclosure. enclosure to help you get the best and most accurate information about NEMA 12 enclosure.
What is the NEMA 12 enclosure?
NEMA 12 enclosure is an industrial-grade protective enclosure defined by NEMA, whose core orientation is to resist dust intrusion and non-corrosive liquid splashes or drips, as well as to prevent personnel from accidentally contacting electrically charged parts, and is suitable for industrial environments such as machining and automation shops. The core protection capabilities it usually has are:
- Dust, Chip and Fiber Resistant: It has good sealing performance to prevent airborne dust, lint, fibers and other solid contaminants from entering, which is very important for industries such as textile, woodworking and food processing.
- Drip and non-corrosive liquid resistant: It is resistant to dripping and splashing non-corrosive liquids such as: coolant next to machine tools and CNC machining centers; splashing lubricants and cutting oils on automated production lines; condensation or splashing water droplets in the environment.
NEMA 12 electrical enclosures are typically made of durable materials such as cold rolled steel, stainless steel, or polycarbonate plastics with finishes and seals designed to resist penetration and erosion of oils and fluids, preventing the enclosure from corroding.
Benefits of NEMA 12 enclosures
Superior industrial protection: This is the most central benefit of NEMA type 12 enclosure. Its completely sealed structure prevents the intrusion of fine solid particles such as dust, fibers, cotton wool, etc., preventing them from causing circuit short circuits, poor contact, or overheating of components; it is able to resist dripping and splashing of non-corrosive liquids such as coolant, lubricating oils, and cutting fluids, which ensures that the electrical equipment can still be operated safely in wet or liquid splashing areas, and is especially suitable for machine tool machining, automated production lines, and other scenarios in which oils exist. penetration scenarios.
Cost Effective: NEMA 12 enclosures are less expensive to manufacture than NEMA 4 or NEMA 4X enclosures. Its level of protection is sufficient for use in most indoor industrial environments (e.g., factory floors, assembly lines), optimizing costs and benefits.
Rugged construction: NEMA 12 electrical enclosures are typically made of cold rolled steel, stainless steel, or engineered plastics for high mechanical strength. This allows them to withstand the physical shock, vibration and abrasion of the industrial environment, providing solid physical protection for the delicate electrical components inside. Moreover, Supro’s NEMA 12 electrical enclosures are designed to support wall-mounting, floor-mounting, DIN-rail mounting, etc. The standardized holes in the enclosure can be directly adapted to PLC modules, relays, and other industrial components, and can be retrofitted with cooling fans, observation windows, and other accessories.
is applicable to a wide range of applications: the NEMA 12 electrical enclosure is the default choice for many industries because its protection level is precisely positioned for the most common industrial hazards. From traditional manufacturing to modern automated production lines, NEMA 12 enclosures can be applied. This broad applicability also means that the specifications and dimensions are very standardized and easy to purchase and replace.
improves the operational stability and longevity of electrical equipment: NEMA 12 electrical enclosures isolate sensitive internal components of electrical equipment from the harsh environment, reducing equipment failures and downtime due to environmental contaminants. This not only ensures the continuity and stability of the production process, but also extends the life of internal components, saving significant maintenance costs and downtime.

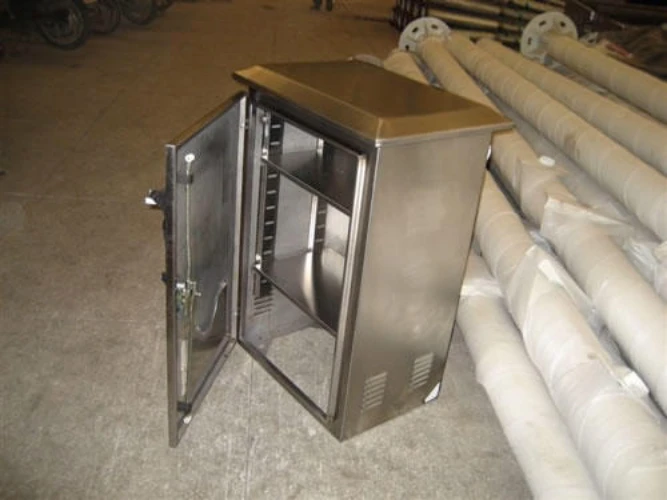

Why choose Supro MFG's Custom metal enclosure Services
Real ex-factory price:
Provide the most cost-effective cost solution for manufacturing and assembling products, expanding product competitiveness.
Professional technical team:
a technical team specializing in custom shell manufacturing for more than 30 years.
Advanced Manufacturing Equipment: Industry-leading custom metal enclosure manufacturer with in-house sheet metal, die casting, precision machining workshops, and surface coating workshops.
ISO 9001-2015 Manufacturer:
ISO 9001-2015, PPAP III level, RoHS, NEMA, CE and other certified production standards.
24H*7 online English technical support: The professional English team responds quickly to users’ technical questions online at any time.
One-stop manufacturing solution:
help users from product design, prototype, batch manufacturing, surface treatment, assembly and packaging, transportation and a series of value-added services.
Authoritative testing capabilities:
With in-house mechanics and chemistry laboratories, it can quickly monitor manufacturing process quality control to ensure the delivery of high-quality products.
Intellectual Property Protection（NDA):
Accept to sign NDA documents to ensure that customers’ product information is protected.
Commitment to On-Time Delivery:
Door-to-door delivery in customizable secure packaging after complying with the delivery details agreed with the customer.
Limitations of the NEMA 12 enclosure
Although the NEMA 12 enclosure is popular and powerful in industrial applications, it is not foolproof. Understanding its limitations is important for proper selection and to ensure equipment safety.
is not intended for use in outdoor or severe weather environments: This is the number one limitation of the NEMA 12 enclosure, which does not provide full protection from outdoor environments. It cannot withstand the direct blowing and accumulation of wind, rain, snow and ice. Although it is splash-proof, continuous rain penetration and internal condensation due to high and low temperatures can damage internal electronic components.
Poor corrosion resistance: The NEMA 12 rated standard requires resistance to non-corrosive liquids. When strong acids, bases, or high concentrations of corrosive gases are present in the environment, the standard NEMA 12 electrical enclosure will corrode and its sealing gaskets may degrade and fail.
Not Resistant to High-Pressure Flushing or Immersion: NEMA 12 electrical enclosures are not resistant to high-pressure water flow. In food processing, pharmaceutical, or deep-cleaning areas where water cannons are required for cleaning, NEMA 12 rated seals do not resist intrusion by high-pressure, high-flow velocity water, and cannot be used in areas where electrical equipment may be temporarily flooded or in electrical equipment that may be subjected to prolonged periods of moisture.
Poor Heat Dissipation: NEMA 12 enclosure has limited heat dissipation capability. When components that are prone to heat generation, such as high-power drives and transformers, are installed inside, the heat will build up and lead to high temperatures, which may trigger overheating of the components and degradation of performance. Therefore, it is usually necessary to install heat sinks and cooling fans.
is not explosion-proof: NEMA 12 enclosure cannot be used in hazardous locations where flammable gases, vapors, or dusts are present.
In short, if your application environment involves outdoor weather, high-pressure washdowns, corrosive chemicals, or explosive environments, then a NEMA 12 electrical enclosure is not an appropriate choice. Accurately assessing the potential risks of your application environment is the key to the proper selection of NEMA enclosures.
NEMA 12 enclosure use scene
Industrial manufacturing and automation control scenarios: In CNC machine tools and machining centers, NEMA 12 electrical enclosure is used to protect PLC, servo drives and other control units from cutting oil and metal dust; in stamping and welding shops, it is used to prevent metal dust and sparks from entering electrical cabinets and so on.
Material Handling and Packaging: In logistics, warehousing, and production lines, NEMA 12 enclosures prevent confetti, dust, and small amounts of cleaning fluids from spilling onto control components such as motor starters, inverters, and sensors.
Automotive manufacturing and assembly lines: control panel enclosures for control stations on automotive assembly lines, electrical equipment enclosures in paint shops, etc.
Food & Beverage Processing: electrical equipment enclosures in food packaging areas, control panels enclosures in bottling and canning lines, etc.
Other industries and infrastructures: pump controllers enclosure for wastewater treatment plants, electrical control cabinets enclosure for the plastics and rubber industries, etc.
Comparison of NEMA 12 enclosure and NEMA 1 enclosure
The NEMA 12 enclosure is a protective enclosure designed for industrial indoor environments, while the NEMA 1 enclosure is a basic protective enclosure designed for dry, clean rooms.
If your equipment is installed in a clean office environment or a specialized electrical room, the NEMA 1 enclosure is an economical choice. However, if the equipment needs to be installed next to a production line, near machine tools, or in any area where it may be exposed to industrial contaminants, then a NEMA 12 enclosure is required.
NEMA enclosure type | NEMA12 enclosure | NEMA 1 enclosure |
Dust resistance | Dust, chip and fiber resistant | Protection against large solids + personnel misuse |
Water Resistance | Non-corrosive liquids that are drip-proof and splash-proof | Largely unprotected |
Oil Resistance | Resistant to oil penetration | No oil resistance |
Sealing performance | Fully sealed with gasket, no vent holes | Unsealed, usually with ventilation holes |
Usage Scenario | Suitable for most industrial indoor environments | Clean, dry room |
online custom metal fabrication parts
Only 4 steps
Contact our experts team and experience the efficiency and economic benefits of digital metal fabrication services.
Upload Design Files
STL , STEP (.stp), IGES (.igs), (.ZIP), or PDF.
Also be a sample or an idea
Quote & Design Analysis
Instant factory quotes and DfM reports, the most reasonable solution.
Manufacturing Begins
Digital processes can initiate order tasks within 24 hours.
On-Time Delivery
Keeping delivery promises, approved by 3000+ Global Company buyers.
NEMA 12 enclosure Frequently Asked Questions
Can NEMA 12 enclosures be used outdoors?
No. NEMA 12electrical enclosures are designed for indoor industrial environments and are not designed to withstand the direct effects of outdoor weather such as rain, snow, and hail.
Should I choose a carbon steel or NEMA 12 stainless steel enclosure?
It depends primarily on the application environment. Carbon steel NEMA 12 enclosures are economical and suitable for most standard industrial environments; NEMA 12 stainless steel enclosures are more expensive and are suitable for industrial environments that are wet, require regular cleaning, or have a slight risk of corrosion, such as food and beverage plants, pharmaceutical factories, etc., where they provide better corrosion resistance and easier-to-clean surfaces.
What do I need to be aware of when installing a NEMA 12 enclosure?
Ensure that the sealing gasket is intact. When closing the enclosure door, check that the sealing gasket is intact and not twisted, broken or detached. Damaged gaskets can completely destroy the seal of the enclosure.
