In industrial electrical wiring systems, building circuit installations and other scenarios, the terminal box is an important part of protecting electrical connections and ensuring the safety and reliability of electrical installations. In this article, we will analyze the various aspects of terminal boxes, starting with a basic definition, then identifying their main functions and common materials, and finally analyzing how to choose the right terminal box.
This article is designed to help you get a comprehensive understanding of the basics of the electrical terminal box and to make scientific and informed decisions on your projects!
What is a terminal box?
The electrical terminal box is an important part of the electrical wiring and is a specialized box used to contain and protect electrical connections. It is one of the most basic and common components in electrical engineering, and is widely used in industry, construction, infrastructure, and a variety of household equipment. terminal box can provide protection for the electrical connections and wires terminated in the box, and provide a safe and convenient connection point for these electrical connections.

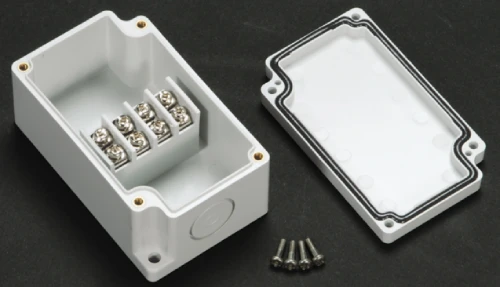

A standard electrical terminal box usually has the following components:
- Box Body: This is the main structure, forming an enclosed or semi-enclosed space. It is usually made of metal or plastic and comes in a variety of sizes and shapes to suit different applications. It protects against physical damage as well as threats from other environmental factors such as dust and moisture, and helps prevent short circuits, electrical fires, and accidental contact with electricity.
- Inlet/Outlet Holes: holes on the side or bottom of an electrical terminal box often carrying threads or seals for the introduction and egress of cables. Bringing together wires from different parts of the electrical system.
- COVER: An openable cover that provides access for operation during installation, inspection, or repair of wiring.
- Internal Terminal Block: a part of the box used to connect wires.
Role of the terminal box
The electrical terminal box has a variety of important functions in the electrical system. Its core role is mainly in the following areas.
Protection of electrical connections
The terminal box protects electrical connections from physical damage and other environmental threats such as airborne dust, moisture, and corrosive substances. This protection helps prevent short circuits, electrical fires, and other safety issues.
Wiring management
The electrical terminal box makes wiring management and organization easier by connecting wires from different directions and providing a centralized, organized operating platform. It centralizes and organizes the messy connectors to avoid cross-tangling of wires and make the wiring more regular, which can effectively reduce the electrical hazards caused by chaotic wiring. This is very important in complex electrical systems where multiple wires and circuits intersect.
Safety protection
The junction terminal box isolates the electrically charged joints from the human body and other equipment, reducing the risk of electric shock, especially in industrial flammable and explosive environments (e.g., chemical workshops), the electrical terminal box prevents sparks from the joints from igniting the surrounding combustible materials, safeguarding the safety of people and property.
Maintenance and overhaul
The junction terminal box facilitates the maintenance, inspection and troubleshooting of electrical connections. It centralizes all connections inside the box, making subsequent inspections, tests, repairs or wiring modifications very easy. Instead of spending long hours searching for hidden connectors, technicians can simply open the junction terminal box and proceed, simplifying the process of identifying and fixing electrical system problems and shortening repair time.
Compliance with codes and standards
The use of the electrical terminal box helps to ensure that electrical connections are made in accordance with electrical codes and standards (e.g., the U.S. National Electrical Code), ensuring a safe and reliable electrical system.
Provide Electromagnetic Interference (EMI) Shielding
Metal junction terminal boxes provide EMI shielding, which is important for electronic equipment that may be affected by EMI, to help ensure the stable operation of sensitive electronic equipment.
In short, electrical terminal box through the isolation of wires and the external environment of the contact and centralized wiring way, for electrical connections to provide a safe and orderly, easy to manage the space.
It can effectively protect the electrical connection from various potential threats in the environment, and ensure that the line connection is safe and stable, convenient grounding, easy maintenance and overhaul, is to build a safe, reliable, easy to maintain an important part of the modern electrical system.
Are you looking for reliable & cost-effective
China Sheet Metal Fabricators
More than 150,000 OEM metal fabrication products delivered to 5,000+ global buyers.
And benefit from it!
Common materials for terminal box
The electrical terminal box can be made of various materials, different materials have specific properties, suitable for different applications and environments. the choice of material for the terminal box mainly depends on the specific installation environment, protection level, electrical performance and other factors.
Choosing the right material can ensure that the terminal box meets the safety regulations, ensure the safe and stable operation of the electrical system and extend its service life. Commonly used electrical terminal box materials are engineering plastics, metal and composite materials.
The common materials used for electrical terminal box vary significantly in different scenarios. Civilian scenarios tend to choose low-cost, good insulation plastic terminal box; industrial high-temperature environments commonly used metal terminal box; outdoor or corrosive environments often use composite material terminal box with strong anti-aging ability.
Material type | Characteristics | Common Scenarios and Applications |

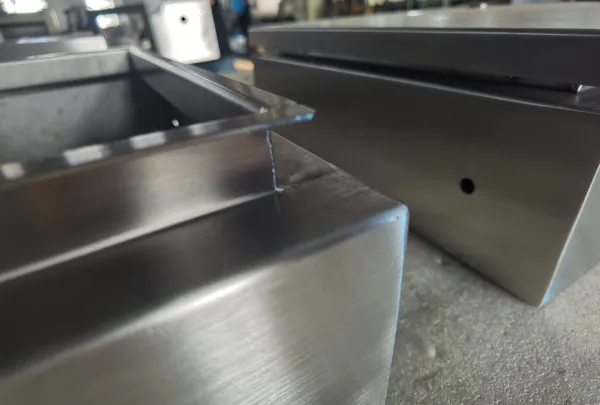

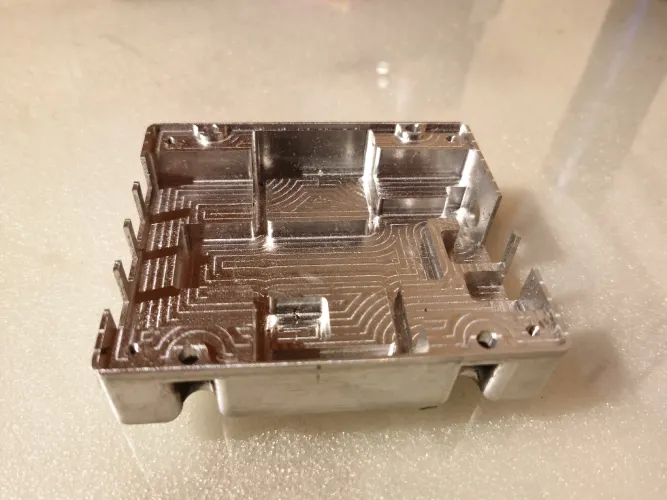

Metal electrical terminal box | High mechanical strength, high impact resistance, excellent temperature resistance, long service life, good EMI shielding effect. | Suitable for industrial environments with high temperatures, high vibration or where electromagnetic shielding is required |
engineering plastics electrical terminal box | Lighter than metal electrical terminal box, corrosion resistant, easy to install, | Residential facilities, commercial buildings, |
composite materials electrical terminal box | Excellent insulation | Outdoor applications (weatherproof), corrosion-resistant and easy-to-install environments |
How to choose the right terminal box?
Choosing the right terminal box requires comprehensive consideration of the environment, material, protection level, size and other factors. By evaluating these key factors, you can choose a safe and reliable terminal box for your electrical system.
Specific use environment of electrical terminal box
First of all, you need to determine the purpose and environment of the electrical terminal box, whether it is a simple home lighting wiring, or complex industrial production line control? Is it indoor, outdoor, or extreme environment? Will it be exposed to chemicals or hazardous locations? Different application environments have different requirements and standards, for example: outdoor must be considered waterproof, UV protection; chemical plants must be considered corrosion-resistant; hazardous scenarios must use explosion-proof terminal box.
Material
Choose the right material for the electrical terminal box according to its environment and application:
Engineering plastics (e.g. PC, PA) are widely used in residential and office scenarios due to their excellent insulation, light weight, corrosion resistance and low cost;
Metals (e.g. stainless steel, aluminum alloys) are commonly used in industrial or heavy-duty applications (e.g. factories, large machinery) due to their high mechanical strength, impact resistance and excellent electromagnetic shielding;
Stainless steel or composite materials are often used in highly corrosive or special environments (e.g. chemical, coastal).
Protection level
Confirm the IP protection level of the terminal box according to the potential threats in the environment.
Indoor dry environment: IP20 is usually sufficient.
Outdoor rain and dust protection: IP65 terminal box or IP66 terminal box is recommended.
Temporary water immersion: IP67/IP68 terminal box is required.
Size and mounting
The terminal box must be large enough to accommodate all wires and connectors to avoid overcrowding and to allow some space for heat dissipation and wiring.
Also confirm the mounting method of the terminal box, whether it is Surface-Mounted, Flush-Mounted or Underground.
Comply with relevant regulations and industry standards
Ensure that the terminal box complies with the electrical codes of the project location, such as the NEC standards of the United States and the IEC standards of the European Union. Avoid using “no brand”, “no after-sale”, “no certification” terminal boxes to prevent safety accidents caused by substandard products.
