In the power electronics and new energy vehicle connector sectors, C10100 pure copper emerges as the preferred material for busbars, terminals, and shielding components due to its conductivity approaching 100% IACS. However, stamping high-purity copper is far from simple compression forming—every variable, from the metallurgical state of copper stamping blanks to die geometry angles, impacts part lifespan at the microscopic level.
As a specialized copper stamping manufacturer, Supro MFG understands that reliable copper stamping parts stem from precise calculations of material flow and springback compensation. Our engineering team applies DFM principles to every project, preventing springback and tearing by optimizing die geometry and blank clamping force. Combining technical expertise with in-house tooling capabilities, we deliver copper stamping services from prototyping to high-volume production—ensuring your critical components meet certified material properties and dimensional stability.
This article delves into the stamping process for C10100 pure copper sheet, revealing how finite element analysis optimizes stress distribution to establish a quantifiable, repeatable control framework for copper stamping processes.

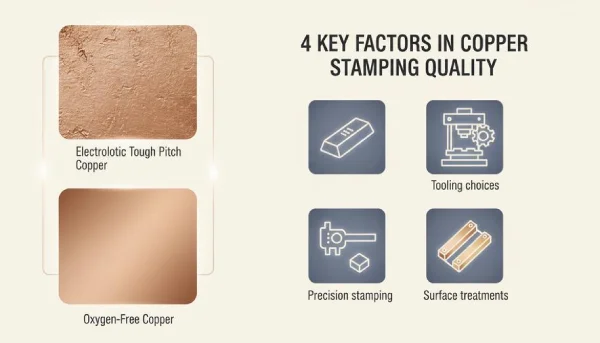

4 Key Factors In Copper Stamping Quality
Copper stamping sounds simple—press, shape, done. Not quite. From copper choice to surface finish, every detail affects conductivity, durability, and cost. Smart copper stamping means balancing metal, tooling, tolerance, and treatment so parts perform without drama.
Material Selection: Electrolytic Tough Pitch Copper vs. Oxygen-Free Copper
In the copper stamping process, the material determines the final outcome.
Regarding copper purity: Electrolytic Tough Pitch Copper (ETP copper), with ~99.9% purity, maintains stable material properties in busbar applications; Oxygen-Free Copper (OFC) offers higher purity and a cleaner grain structure.
Regarding electrical conductivity: ETP copper serves as a robust benchmark for terminal applications; OFC delivers optimized conductivity suitable for high-frequency electronic devices.
Concerning thermal conductivity and ductility: Both materials exhibit excellent thermal conductivity; OFC enhances ductility during deep draw copper press work.
For high-vacuum or precision electronics, oxygen-free copper stamping wins. For cost-efficient stamped copper parts, ETP works just fine. At supro mfg, material selection is matched to load, heat, and forming limits before a single die closes.
Precision Stamping Capabilities and Tight Tolerances
For high-purity copper stamping parts, dimensional stability directly determines electrical performance. When processing copper stamping blanks into finished terminals or busbars, we maintain positional accuracy within ±0.01 millimeters through multi-stage progressive dies—critical for connector alignment in high-current applications.
Our springback compensation technology, based on real-time strain data, ensures formed features consistently meet specifications—even when precisely controlling the inherent ductility of C10100 material. Unlike conventional stamping shops, we integrate statistical process control directly into the copper stamping process. Monitoring tonnage curves and material flow in real-time at 200+ SPM (strokes per minute) delivers burr-free cut edges and repeatable bend angles for copper stamping parts—whether for prototype validation or mass-production-grade copper stamping services.
Tooling Choices: Carbide Dies and Forming Dies Decision
Tooling makes or breaks copper stamping runs.
Carbide Dies:High Wear Resistance.Longer Tool Longevity.Stable Surface Finish in mass production.
Forming Dies:Flexible Die Design.Better for complex bends.Ideal for multi-slide stamped copper parts
Short runs? Forming dies keep things agile. High volume? Carbide dies handle the grind. Tooling material must match production speed and copper grade, or costs creep up fast.
Surface Treatments Impact: Nickel Plating vs. Passivation
Surface finish shapes long-term performance.
Nickel Plating:Boosts Corrosion Resistance.Improves Solderability.Enhances Adhesion for contacts
Passivation:Protects Surface Integrity.Maintains conductivity.Minimal dimensional shift
For electrical copper stamping, plating often supports connector life. For structural stamped copper components, passivation keeps oxidation in check without altering tolerances.
Done right, copper stamping isn’t guesswork—it’s controlled, repeatable metal stamping built on smart choices.
online custom metal fabrication parts
Only 4 steps
Contact our experts team and experience the efficiency and economic benefits of digital metal fabrication services.
Upload Design Files
STL , STEP (.stp), IGES (.igs), (.ZIP), or PDF.
Also be a sample or an idea
Quote & Design Analysis
Instant factory quotes and DfM reports, the most reasonable solution.
Manufacturing Begins
Digital processes can initiate order tasks within 24 hours.
On-Time Delivery
Keeping delivery promises, approved by 3000+ Global Company buyers.

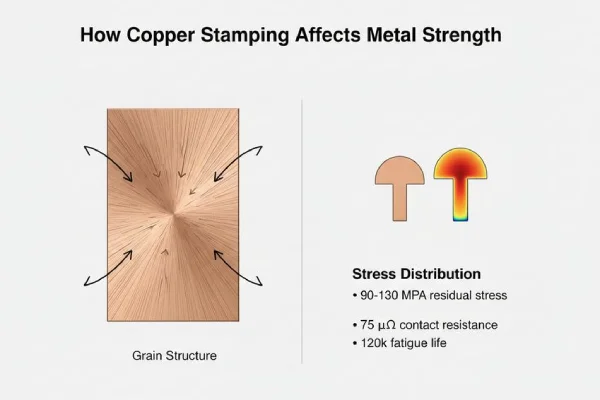

How Does Copper Stamping Affect Metal Strength?
The copper stamping process not only shapes the material but also alters its mechanical properties at the grain level. During deformation, dislocations accumulate and the grain structure undergoes stretching, directly impacting yield strength and electrical conductivity. For critical applications like busbars or terminals, understanding these metallurgical changes is key to selecting reliable copper stamping parts and identifying field failures.
Effect of Deep Drawing on Grain Structure
In copper stamping, especially during deep drawing, the internal grain structure doesn’t stay put.
During plastic deformation:Grains stretch along the draw direction.The microstructure becomes elongated.Dislocation density rises
As strain increases:Grain size effectively refines along stress lines.Work hardening boosts yield strength.Ductility drops
With heat treatment:Annealing triggers recrystallization.New equiaxed grains form.Mechanical balance returns
In copper metal stamping for heat sinks and shielding shells:
Strength ↑
Formability ↓
Hardness ↑
That trade-off matters in copper stamping projects where tight bends meet load-bearing demands. Precision copper stamping must control draw ratio, lubrication, and punch speed to avoid tearing while tuning strength.
Copper forming isn’t guesswork—it’s controlled structural change.
Stress Distribution in Electrical Contacts and Busbars
In copper stamping for electrical contacts and busbars, internal force paths decide lifespan.
In-Depth Analysis of Stress Distribution:
Mechanically, the bending region is subjected to peak mechanical stress, while the stamping region compresses the surface layer.
Thermally, load cycling generates thermal stress, and uneven heating affects contact resistance.
At the simulation and control level, finite element analysis generates stress distribution maps, while die geometry optimization directs stress flow.
Copper sheet stamping processes that neglect stress distribution often result in fatigue cracks at sharp corners. Copper sheet stamping processes integrated with simulation ensure uniform stress distribution in stamped copper parts. It is precisely for this reason that copper sheet stamping technology can support high-cycle power systems.
Parameter | Low-Control Stamping | Precision Copper Stamping | Optimized Range |
Residual Stress (MPa) | 180–220 | 90–130 | <120 |
Contact Resistance (µΩ) | 120 | 75 | <80 |
Fatigue Life (cycles) | 50k | 120k | >100k |
Role of High Purity Copper and Beryllium Copper Alloy
Material selection in copper stamping determines everything.
High-purity copper serves as the fundamental conductive material, maximizing electrical conductivity while offering robust formability and moderate strength.
Beryllium copper alloys are employed for springs and elastic components, enhancing material properties with superior fatigue resistance and exceptional elastic rebound control.
Regarding alloy design elements, added elements can improve wear resistance, adjust hardness, and balance ductility.
In copper stamping for spring clips and terminals, high purity copper handles current flow, while beryllium copper alloy handles repeated flex. That combo keeps copper stamping parts from sagging under load.
Stamped copper parts used in EV connectors, switchgear, and data hardware rely on this balance. Copper stamping isn’t just shaping metal—it’s tuning strength, conductivity, and fatigue life at once.
For manufacturers scaling stamped copper components, supro mfg integrates copper stamping expertise with alloy selection to hit both performance and cost targets without overbuilding the part.
Are you looking for reliable & cost-effective
China Sheet Metal Fabricators
More than 150,000 OEM metal fabrication products delivered to 5,000+ global buyers.
And benefit from it!
FAQs about Copper Stamping
How does copper stamping maintain consistency in high volume production?
Consistency in copper stamping comes from control at every stage:
Process control:
Progressive Die Stamping and Fine Blanking hold tight tolerances for Electrical Contacts and Terminals and Connectors.
Multi-Slide Stamping supports stable forming of Spring Clips and Shielding Components.
Tooling discipline:
Carbide Dies extend tool life in High Volume Production.
Routine Die Maintenance prevents drift in critical dimensions.
System integration:
Automated Assembly reduces handling errors.
In-house Tooling and Design for Manufacturability shorten feedback loops.
This structure keeps Busbars and Heat Sinks consistent from the first part to the last.
Which materials are best suited for copper stamping applications?
Material | Typical Use | Key Advantage |
Electrolytic Tough Pitch Copper | Busbars, Grounding Straps | Strong conductivity, cost balance |
Oxygen-Free Copper | High-frequency contacts | High purity, strong weldability |
Beryllium Copper Alloy | Spring Clips | Fatigue resistance |
Phosphor Bronze | Terminals and Connectors | Wear resistance |
Brass Alloy C26000 | Shielding Components | Formability |
High Purity Copper | Precision electronics | Stable electrical flow |
Selecting the right grade ensures Precision Stamping results that match the part’s working stress and electrical demand.
Why is tooling selection critical in copper stamping?
Tooling determines repeatability and part life.
Progressive Dies: efficient for Electrical Contacts in long runs.
Compound Dies: combine cutting and forming in one stroke.
Forming Dies: shape complex Busbars and Heat Sinks.
Steel Dies vs. Carbide Dies: cost versus longevity trade-off.
Without strict Die Maintenance, Tight Tolerances fade, especially in Deep Drawing or Coining Operation steps.
How do stamping processes influence part strength and shape?
Each forming method leaves its mark on the metal:
Deep Drawing increases strength through work hardening but reduces ductility.
Coining Operation refines surface detail and stress distribution in Terminals and Connectors.
Four-Slide Stamping allows compact, complex Spring Clips with precise bends.
The balance between strength and flexibility is carefully managed to prevent cracking during service or welding.
Get instant ex-factory price quotation.
If you only have an idea or an old sample,Let us know.
with photo or video and get our quotation and manufacturing solutions.
- Product design drawings or 3D model files.
- Material standards and appearance requirements.
- Product quantity demand.
- Industry standards in the application field.
- Functional requirements
Summary
High-quality copper metal stamping stems from controlled material flow, precision mold design, and a deep understanding of metallurgical principles. Every step in the process—from selecting suitable copper stamping blanks to managing residual stresses in formed features—influences the final part’s performance.
If you require copper stamping services, contact us immediately! The Supro team is here to assist you. Established in 2004, we are a metal fabrication manufacturer. With extensive manufacturing experience, a robust technical team, and comprehensive manufacturing resources, we have provided flawless metal processing services to over 3,000 companies worldwide.
At Supro, our dedicated quality control team, experienced QC personnel, and scientific quality control processes ensure products undergo rigorous inspection to meet specified technical standards. We maintain full traceability for defective products, covering: raw material inspection, mold inspection, equipment inspection, process sampling, packaging inspection, and final inspection. Our QA (Quality Assurance) ensures products meet necessary tolerances and quality standards. We guarantee timely delivery for all products. From design and rapid prototype fabrication to mass production, we provide expert technical support and exceptional quality at highly competitive prices.
