Custom aluminum stamping parts
Aluminum alloy stamping refers to the stamping hardware made of aluminum alloy, there are many kinds of aluminum alloy materials and specifications and models, different aluminum alloy materials made of hardware stamping parts, performance and use are not the same.The plasticity of aluminum alloy stamping parts is very good.
Pure aluminum is very soft, not strong, has good ductility, can be pulled into a fine wire and rolled into foil, has a good machinability, a large number of wires, cables manufacturing and radio industry and packaging industry. Add a small amount of aluminum in some metals, you can greatly improve its performance. Such as in the aluminum alloy stamping parts in the addition of a small amount of magnesium, copper, can produce tough aluminum alloy stamping parts.
Introduction of CNC Machining Parts
Item Name :
aluminum alloy stamping parts
Material :
aluminum alloy 5052
Dimension :
164mm*110mm*10mm
Min Tolerance :
±0.15mm ( DIN-2768)
Manufacturing Services :
OEM or ODM available
Craftsmanship :
Metal Stamping
Drawing Software:
CAD/Solidworks/CAXA/PDF
Delivery Date :
30 Working Days
Table of Contents
metal stamping manufacturer

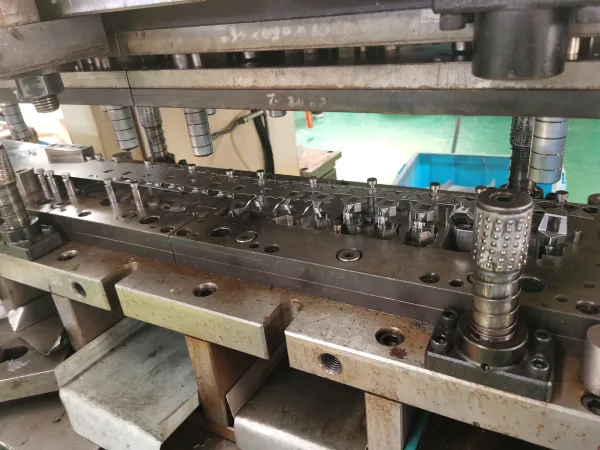

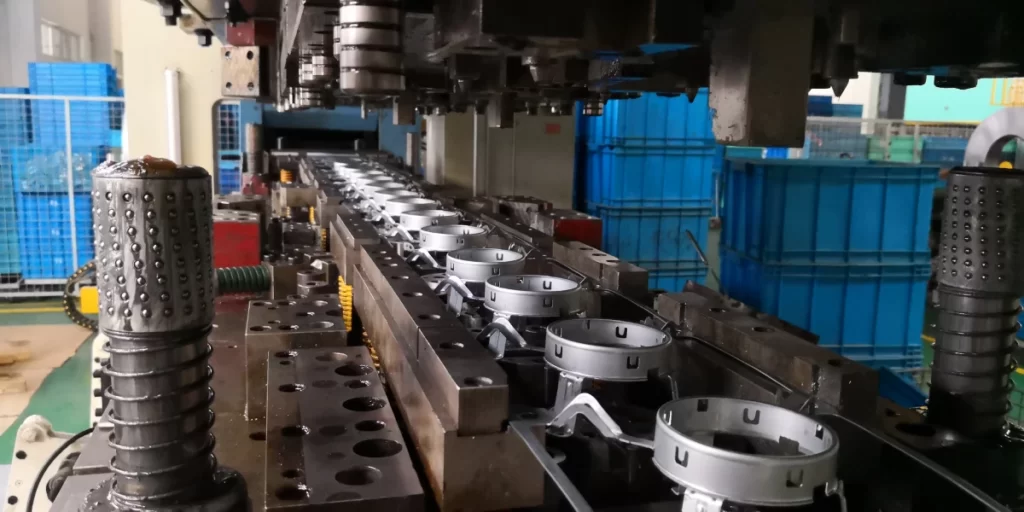

Sheet metal stamping is a widely used sheet metal fabrication process. It needs to rely on a variety of metal stamping dies to limit the shape of the product during the material deformation process, laser cutting, CNC punching, bending, deep drawing, embossing, etc. The manufacturing process of deforming a metal plate into a solid shape.
Precision sheet metal stamping is a high-efficiency solution suitable for mass production, providing high-quality metal parts for aerospace, automotive manufacturig, medical equipment, electronics, industry, and urban infrastructure industries.
Supro MFG is a leading sheet metal stamping company in China, With excellent precision stamping technology and capabilities, Supro MFG can manufacture precision stamping parts that meet all custom metal stamping parts standards and high precision requirements. And provide a wide range of material selection, in-house precision mold die and tools manufacturing services, so that we can maintain high-quality Precision stamping parts and components that exceed industry standards.
If you need customized sheet metal stamping parts, please contact with our expert team.
we will provide one-stop customized manufacturing service and cost competitive factory quotation according to your needs.
about stamping projects
Taking advantage of the malleability and good ductility of aluminum alloy 5052, we supplied aluminum alloy stamping parts to a professional automotive parts manufacturer. The product was designed with precision sealing grooves around the perimeter for the installation of rubber seals. The interior required stamped molding markings, as well as locating bumps. A 10mm high mounting edge is provided around the perimeter and the product is clean, polished and burr free. The product was made from 1mm aluminum sheet, molded in 6 different molds, with a total order of 1,000,000 pieces, and needed to pass a 10% conformity rate, with PPAP and FMEA reports.
Difficulty: This product was initially designed without adding the surrounding sealing ring grooves, which resulted in deformation of the product. The aluminum alloy twisted during the stamping process, resulting in an uneven product that could not be mounted. Supro MFG’s team of engineers did some calculations and found that adding the sealing ring could effectively reduce the risk of deformation.
metal aluminum alloy 5052
5052 aluminum plate for AL-Mg system alloy aluminum plate, magnesium is the main alloying element in the 5052 alloy aluminum plate, is the most widely used kind of rust-proof aluminum, this alloy has high strength, especially with fatigue strength: plasticity and corrosion resistance is high, can not be heat-treated to strengthen the plasticity in the semi-cold-worked hardening when plasticity is still good, cold-worked hardening when the plasticity of the low corrosion resistance is good, good weldability, cutting performance is poor, can be polished.
Aluminum – magnesium alloy also contains a small amount of manganese, chromium, beryllium, titanium and so on. Manganese in the alloy in addition to a small amount of solid solution, most of the formation of MnAl6. 5052 aluminum plate in the role of chromium and manganese is similar to improve the resistance to stress corrosion cracking ability to improve the base metal and weld strength, reduce the tendency to weld cracking, but its content is generally not more than 0.35%!
Chemical composition
Aluminum Al ：Remainder
Silicon Si: ≤0.25
Copper Cu: ≤0.10
Magnesium Mg: 2.2~2.8
Zinc Zn: ≤0.10
Manganese Mn: ≤0.10
Chromium Cr：0.15～0.35
Iron Fe: ≤0.40
Note: Individual:≤0.05;Total:≤0.15
Mechanical properties
Tensile strength (σb): 170-305MPa
Conditional yield strength σ0.2 (MPa) ≥ 90
Molding properties
①The alloy has good plasticity in hot state process. The forging and die forging temperature is 420~475°C, and the hot deformation with deformation rate of 80% is carried out in this temperature range.
② its cold stamping performance and the alloy state, annealed (O) state of the cold stamping performance is good, H32, H34 state is second, and H36/H38 state is not good.
Welding performance
① the alloy of gas welding, arc welding, resistance welding, spot welding, seam welding performance is good, two argon arc welding tendency to crystallization cracks. Hard brazing performance is good, and soft brazing performance is poor.
② high strength and plasticity of the weld, weld strength up to 90% ~ 95% of the base metal strength. But the weld is not high airtightness, recommended 5A03 alloy for solder, can improve its airtightness, and can eliminate the tendency to crack.
(3) mechanical processing performance
The alloy annealed state of the cutting performance is not good, and cold hardening state improved.
Custom aluminum stamping parts fabrication services
With our extensive experience in custom sheet metal stamping fabrication and our advanced equipment.
We can handle precision sheet metal stamping fabrication projects for any industry.
stainless steel stamping parts
Galvanized steel stamped parts
carbon steel stamping parts
copper alloy stamping parts
About SUPRO's Stamping Manufacturing Capabilities
Supro MFG is an industry leading manufacturer of stamped parts, we have specialized in metal stamped parts for over 20 years. We offer a full range of custom stamped parts manufacturing solutions for a variety of industries. These include: automotive parts, medical supplies, hardware, aerospace, military, food processing, battery parts, and more. We have advanced stamping equipment including 1200-ton hydraulic presses, 1000-ton hydraulic presses, 500-ton stamping machines, 300-ton stamping machines, 80-ton high-speed stamping presses, etc. We are also equipped with fully automated material supplying machines and a precision stamping die production shop.
We are good at researching and developing precision stamping dies and mass production of high quality customized stamping parts. Our professional technical team can provide reliable technical support services, as well as one-stop services such as mold design, mold making, rapid stamping prototyping, and batch stamping manufacturing. And we provide cost-effective factory quotation.
With 3000+ buyers from all over the world choosing to establish a long term relationship with Supro MFG, you will benefit here.
No design files? Let Supro MFG do it for you.
We often come across clients who have no professional design drawings and documentation, only a creative idea, which leads to the project being at a standstill.
If you are in this situation, then contact our team of experts.
Supro MFG, as an industry-leading custom metal fabricator, has an ever-experienced team of engineers who utilize their extensive fabrication experience and technical expertise to build your idea into a real product and create design files such as STEP/STP/SLDPRT/DXF/PDF/PRT/DWG/AI.
That’s what makes SUPRO MFG so great, and 2,000 corporate, entrepreneurial, artist, and other purchasers from around the world enjoy working with us and benefiting from our one-stop manufacturing services.
Surface treatment of metal brackets
Supro MFG will choose the right materials, accessories, manufacturing process, etc. according to your needs and application. At the beginning of custom metal bracket projects, all fabrication details will get your permission. Helping you to complete your project with the easiest and most efficient way.
Powder Coating
Effectively wraps metal surfaces and resists rust with aesthetically pleasing custom colors.
anodic oxidation
Forms an oxide film on the surface of aluminum alloy to improve hardness, aesthetics, and corrosion resistance.
Brushed polished
It presents a glossy metallic texture with an even grain that enhances the aesthetics of the product.
sandblast
Cleaning the metal surface, presenting a uniform roughness and improving the adhesion of the paint.
mirror polishing
The metal surface is polished and honed to give a mirror-like finish, increasing the aesthetic effect of the part.
electroplated
A metal protective film, improve wear resistance, conductivity, reflectivity, corrosion resistance and enhance the role of aesthetic.
laser engraving
Commonly used for engraving on the surface of parts, logos, product descriptions, or complex patterns.
screen printing
Printing paint onto the surface of a product creates content of any shape and color that is hard-wearing and beautiful.
